Commercial Catalogue
Our Range of
Commercial Products
Air Conditioning
DC INVERTER DUCTED SPLIT
Capacity Range – 20.0 to 27.0 kw
- 7 Day Programmable Timer
- Control Options
- Auto Restart Last Memory
- Auto Defrost
- Electronic Diagnosis
- High Static
- Pre Charged to 20 Metres
- Standard Interface*
- Blue Fin Treated Condenser Coils
- Side Discharge Condenser
- Premium Controller WDC120G
*Standard interface includes remote on/off signal only for fresh air application and fault alarm

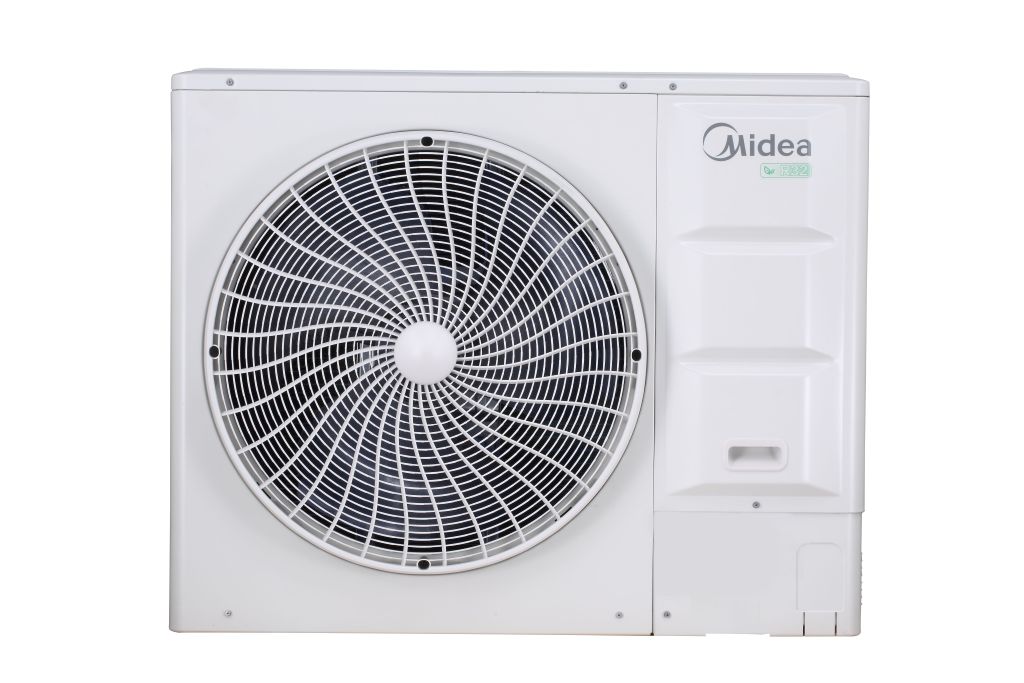

MINI VRF
Capacity Range 8.0 to 16.0 kw
- Auto Addressing
- Easy Maintenance & Commissioning
- Simple Wiring Connection
- Long Pipe Length/Lift
- Easy Piping Connection
- Horizontal Discharge
- Low Noise
- Operating Range -15 to 55 Degrees C
- High Efficient DC Inverter Technology (Twin Rotary)
- DC Fan Motor
- Intelligent Soft Starter Technology
- Compact Design
V6i SIDE DISCHARGE SERIES VRF INVERTER HEAT PUMP
Capacity Range – 18.0 to 33.5 kw
- 1 Module & Up To 20 Indoor Units In Multiple Combinations
- Highly Efficient DC Inverter Technology
- Wide Operation Range -20 to 48 Degrees C
- Long Pipe Length/Lift
- Auto Addressing For Indoor Units
- Simple Wiring Connections
- Self Diagnosis
- Easy Maintenance & Commissioning
- Blue Fin Treated Coils
V6 SERIES VRF HEAT PUMP INVERTER (DC)
Capacity Range 25.0 to 270 kw
- Up to 3 Modules & 64 Indoor Units In Multiple Combinations
- Highly Efficient Heat Recovery
- Intelligent Soft Starter Technology
- Auto Addressing For Indoor Units
- Wide Operation Range -25 to 54 Degrees C
- Long Pipe Length/Lift
- Easy Maintenance & Commissioning
- Excellent Capacity Control
- Simple Wiring Connection
- Self Diagnosis
- Adjustable Cond Fan Static for Ducting (DC)
V6i SERIES HEAT PUMP INVERTER (DC)
Capacity Range 67.0 to 90.0 kw
- 1 Module & Up To 53 Indoor Units With Multiple Combinations
- Highly Efficient DC Inverter Technology
- Intelligent Soft Starter Technology
- Auto Addressing For Indoor Units
- Wide Operating Range -25 to 54 Degrees C
- Long Pipe Length/Lift
- Adjustable Cond Fan Static For Ducting (DC Motor)
- Night Silent Mode
- Easy Maintenance & Commissioning
- Excellent Capacity Control
- Control Options
- Simple Wiring Connection
- Self Diagnosis
- High Efficiency Oil Balance & Oil Return Technology
V6R SERIES VRF INVERTER (3 Pipe) HEAT RECOVERY
Capacity Range – 25.0 to 150.0 kw
- Up to 3 Modules & Various Indoor Fan Coil Combinations
- Highly Efficient Heat Recovery
- Intelligent Soft Starter Technology
- Auto Addressing For Indoor Units
- Wide Operation Range -25 to 52 Degrees C
- Long Pipe Length/Lift
- Up To 12 Connections For The MS Box
- Leak Detection Available For Ms01
- Data Module For Commissioning & Maintenance
- Self Diagnosis
- Adjustable Cond Fan Static For Ducting (DC Fan Motor)
- Excellent Capacity Control
VRF FAN COIL SELECTIONS
Indoor Unit Capacities
- Wall Split – 2.2 to 9.0 kw
- Cassette – 2.2 to 16.0 kw
- Ducted (Medium Static) – 2.2 to 16.0 kw
- Ducted (Medium/High Static) – 2.2 to 16.0 kw
- Ducted (High Static) – 7.1 to 56.0 kw
- Ceiling/Floor Standing – 2.2 to 16.0 kw
- Fresh Air Ducted – 12.5 to 56.0 kw
- Heat Recovery Ventilator (HRV)
VRF AHU CONTROL BOX
(Compatible With All MDV VRF Systems)

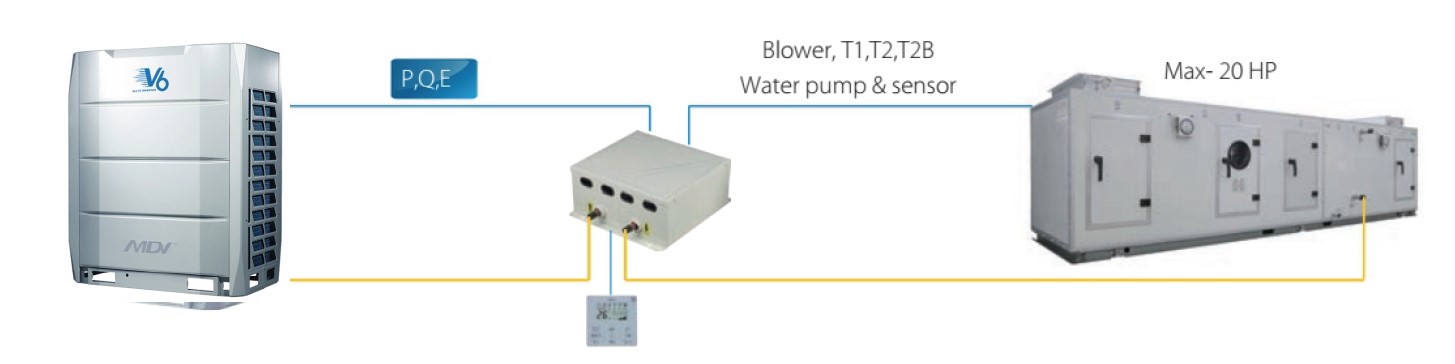

Single AHU Control Box Connection

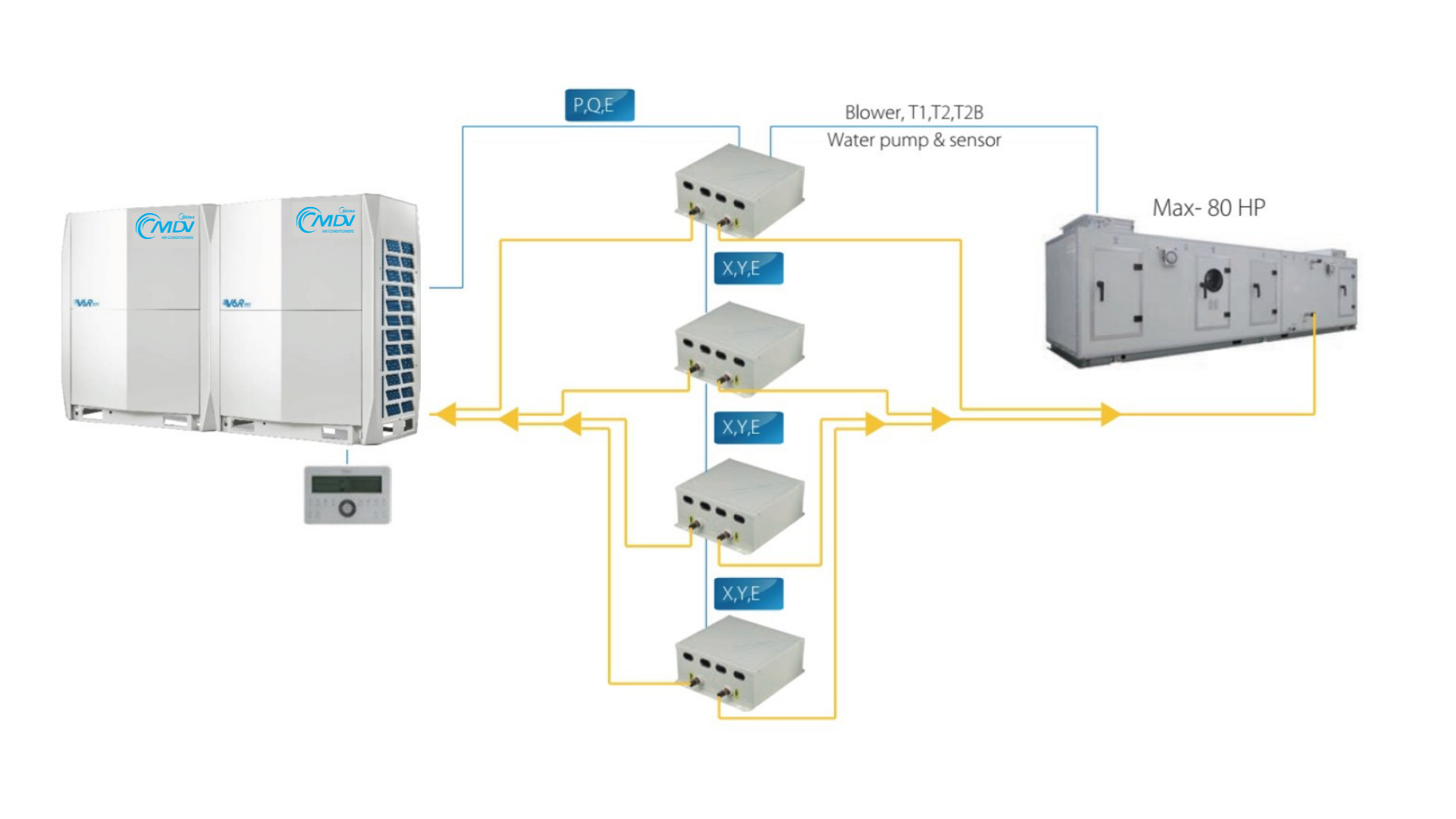

Multi AHU Control Box Connection
CHILLERS

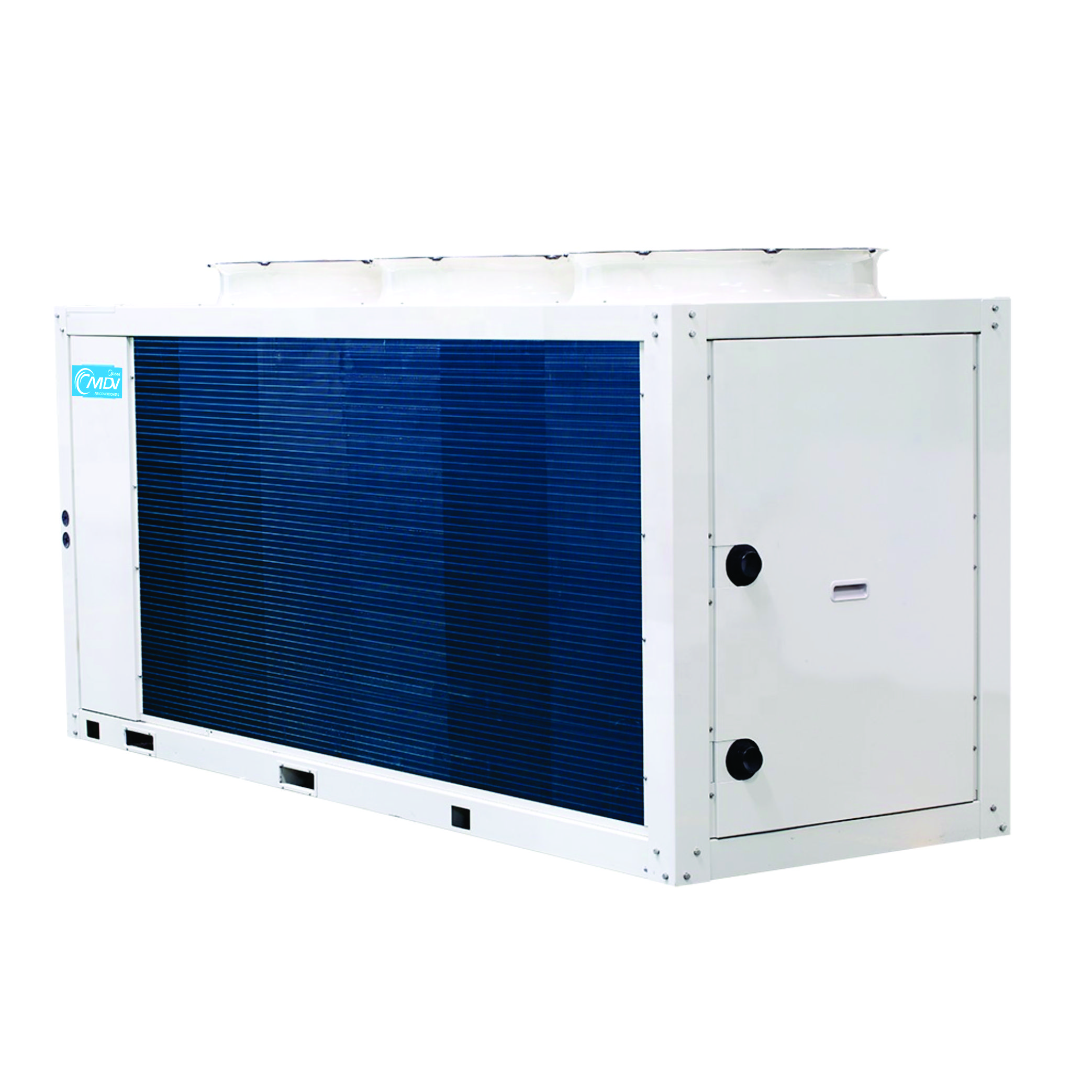

AQUA MINI & AQUA TEMPO
- Wide Operation Temperature Range
- Highly Efficient DC Inverter Technology
- High Performance Heat Exchanger
- Easy Installation
- Easy Control
- High Reliability
- Wide Application Range
- Indoor Fan Coil Options
- Modbus Option Available For Aqua Tempo Series

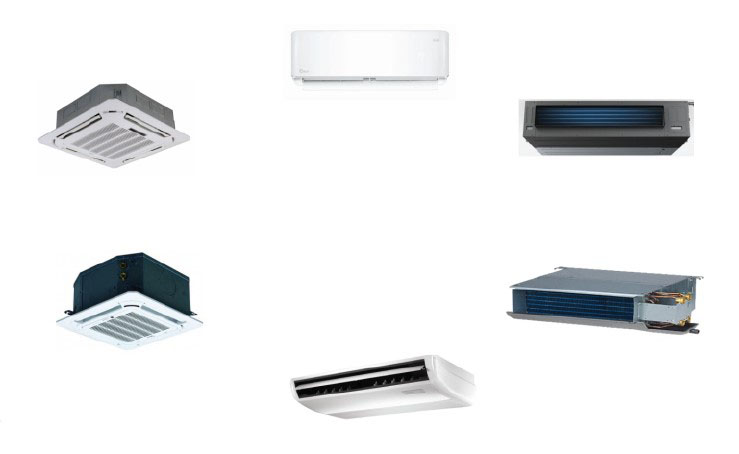

CHILLED WATER FAN COIL UNITS
Indoor Unit Capacities
- Wall Split – 3.0 to 4.5 kw
- 1 Way Cassette – 5.5 to 5.7 kw
- 4 Way Cassette – 5.5 to 12.96 kw
- Ducted – 2.3 and 4 Row (Low Static – 50pa)
– 2 Pipe 2.0 to 18.0 kw
– 4 Pipe – 1.52 to 11.5 kw - Ducted High Static 6.6 to 20.0 kw (70 – 100pa)
- Ceiling Floor Standing – 1.8 to 5.0 kw
- Optional Modbus For DC FCU
- Optional 0-10V Output For Water Valve Control
*Optional 2 and 4 Pipe
**Optional Electric Heaters
**Optional A/C and D/C Motors
Control Options
WDC–120G/WK(A)
WDC-86E/KD
RM12
CCM-180A/BWS 6.2″
CCM-270B/WS 10.1″
IMMP-S
IMMPro Software
CCM-08

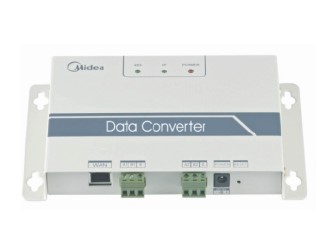

CCM-15
IMMP-BAC(A)
XYE Extension Kit
Our Work
Our Recent
Projects

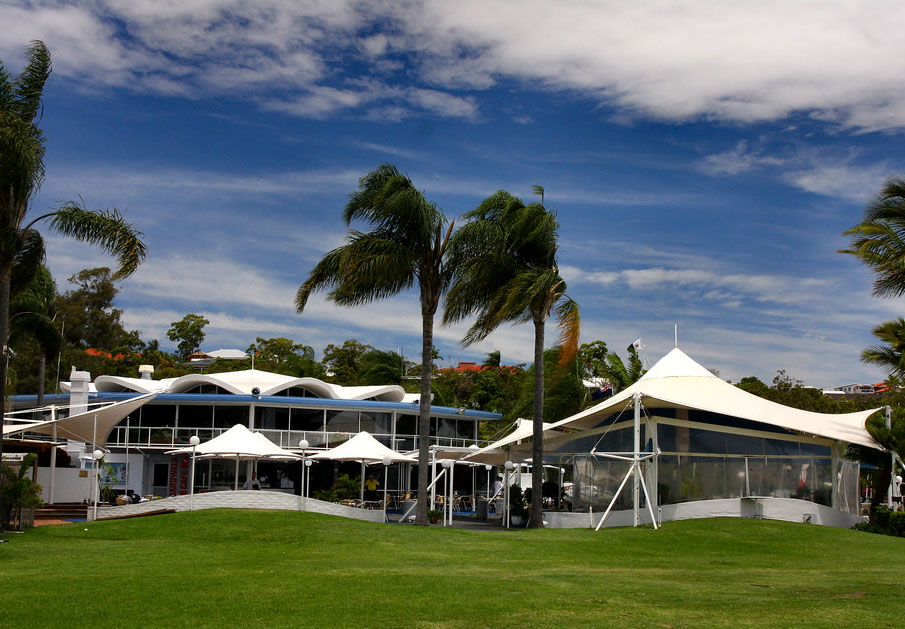

Royal QLD Yacht Club
- Location – Manly, QLD
- Saiver Air Handling Unit (AHU)
- MDV Product – VRF
Westin Hotel
- Location – Perth CBD, WA
- 368 Rooms
- Saiver – Air Handling Unit (AHU) & Fan Coil Units (FCU)
- MDV Product – Chilled Water Fan Coil Units (FCU’s)
